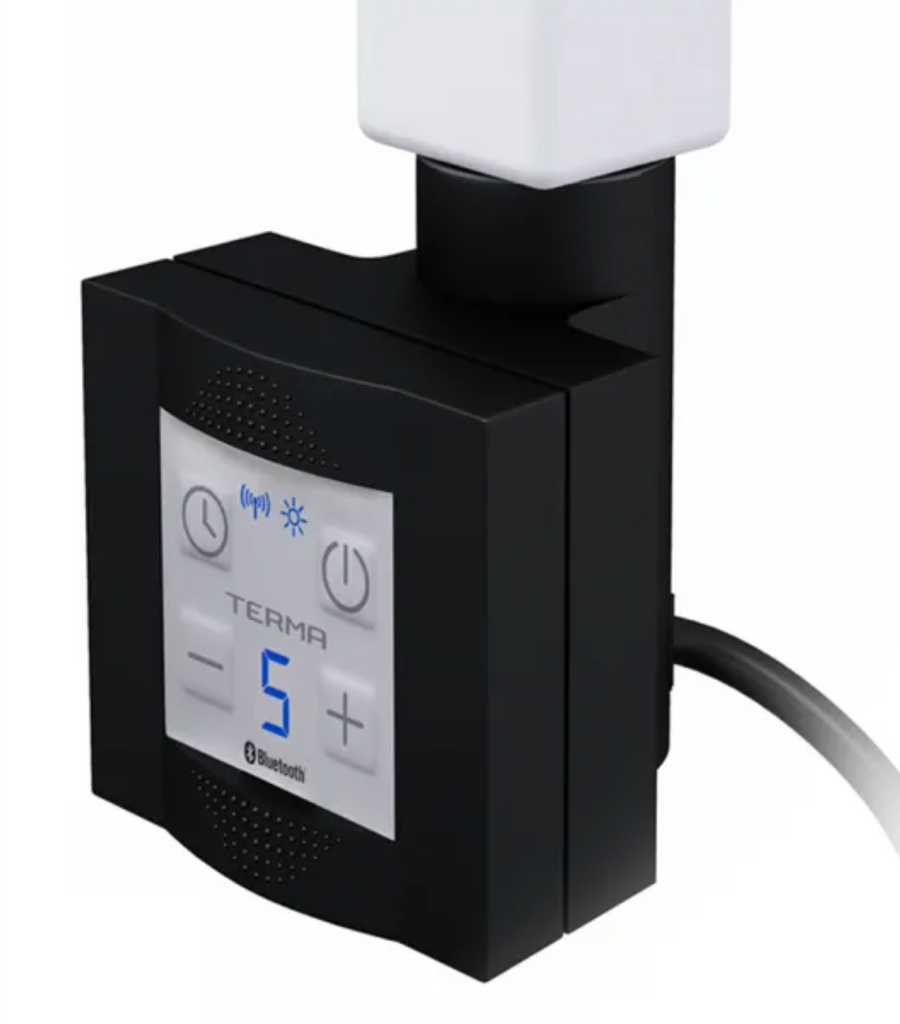

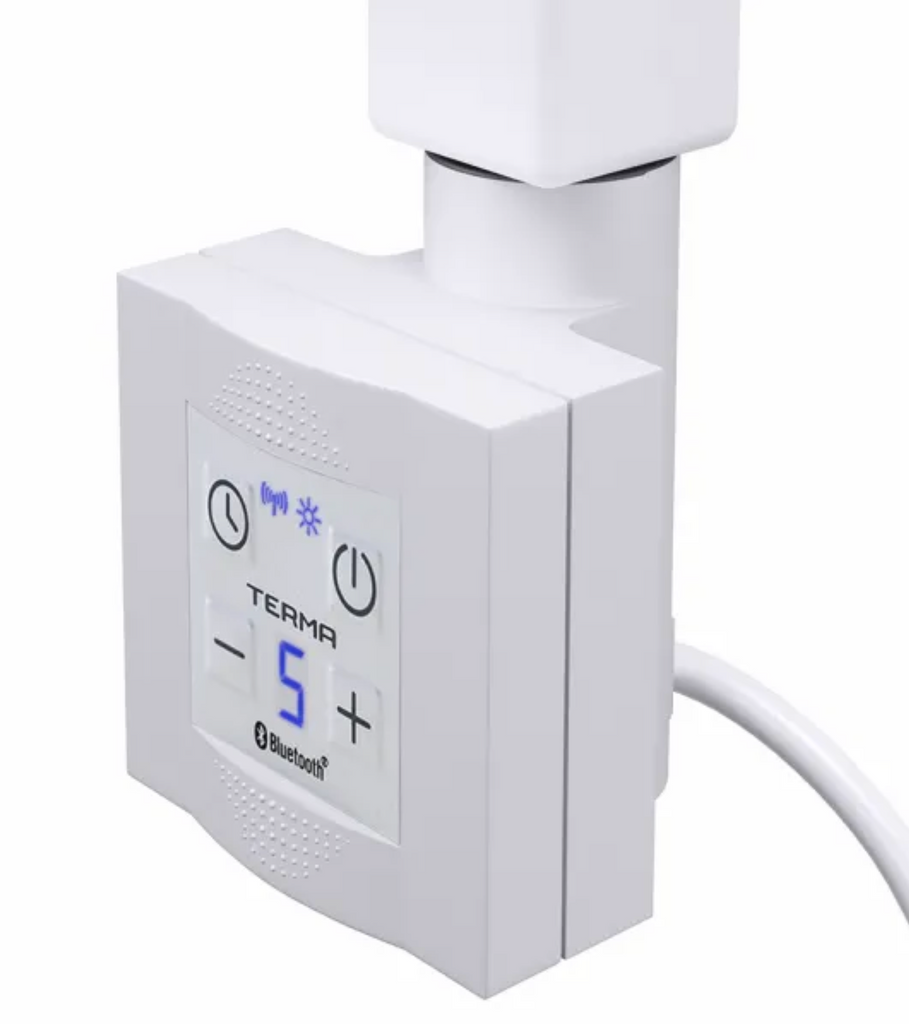

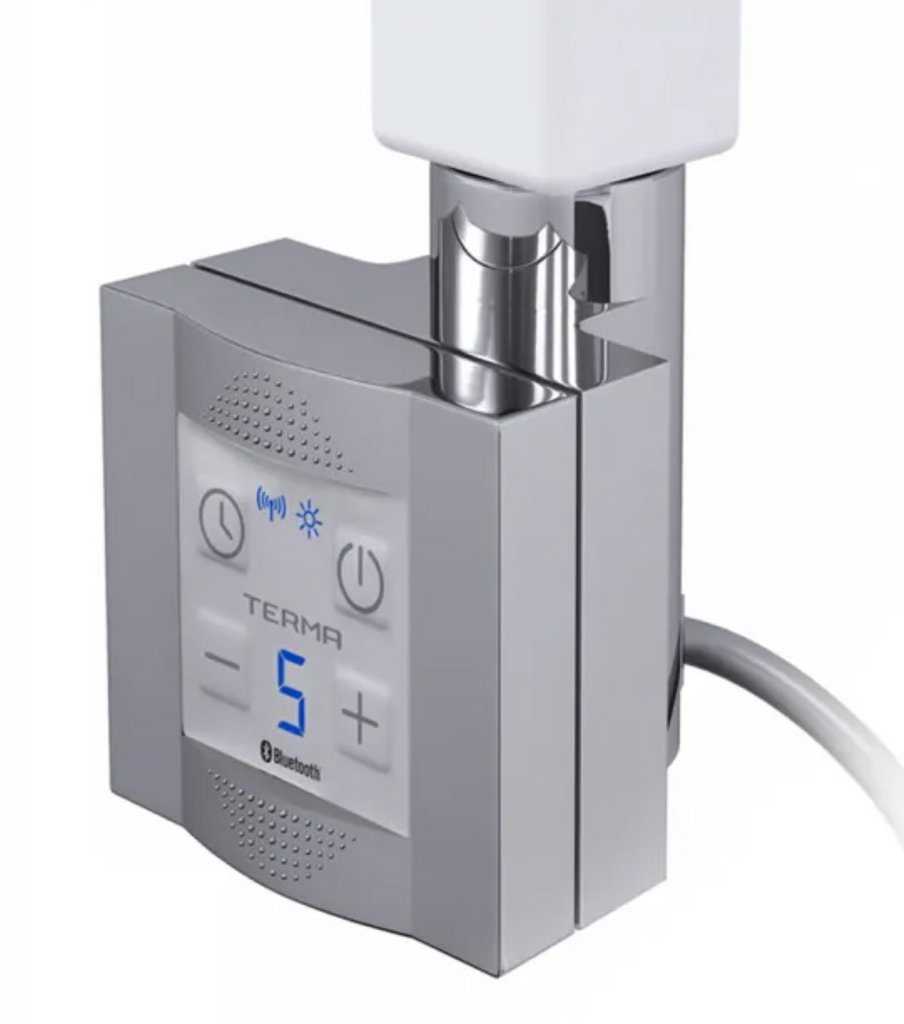

Terma KTX 4 Controller Element

£100.00 £175.00

Quantity

Terma KTX 4 Controller Element

Functionality

Full functionality of the heater is available through the BLUE-Line control application. One can control the radiator temperature (30-60 ° C) and program any number of 7-day schedules and advanced timer. The buttons on the housing allow you to set the operating temperature or run a simplified Timer (up to 4 hours). The device shows the currently set temperature level and indicates the state of heating and cooling. The heater was designed in the Term-Split System, which allows the heater and the controller to be disconnected. The KTX 4 also has a real time heating counter, which allows you to better control the amount of energy consumed.

* Does not apply to MS version

Remote control

Any portable device - smartphone or tablet - with Bluetooth® technology can be used to remotely control. BLUE-Line control application for Android and iOS is available in online stores*. With one device, we can program and control any number of BLUE devices (heater and heater) within range of the mobile device.

Safety

The KTX 4 is equipped with a ‘frost’ protection (ANTIFREEZE). It also has double protection against the element overheating as well as a safety feature that prevents damage in case of operation in a dry radiator. A device error or malfunction is identified by a display of error codes.

Design

Equipped with an easy to read single digit LED display in blue.

Colour

Available colours: white, silver, chrome and black.

Terma KTX 4 Element Product Card

Technical parameters

Features and functions

ANTIFREEZE function, protection against temperatures below 5-7°C
Drying function – with setting of heating power and time (from 1h to 4h)
Actual heating time counter – allowing control over power consumption
The Terma‑Split connector makes it possible to disconnect the heating element from the controller head.
The possibility of programming many 7-day work schedules
The ability to manage multiple heating devices through one application
Symmetrical housing (can be installed on the left or right side)
Housing available in 4 colours – white, silver, chrome and black
Remote control through the application to mobile devices

Technical Specifications

Power :

230V/50Hz

Available output power :

120, 200, 300, 400, 600, 800, 1000W

Protection devices :

Klasa I

Radiator connection :

1/2”

Ingress protection [IP] :

IPx5

** You need the Controller AND the element probe TS1 **

** Information for Customers **

Please be reminded that Terma electric heating elements must only be used in systems properly filled with a heating medium (such as water or another approved fluid, as specified in the user manual)

Important: Do not switch on the heating element unless the heating rod is fully submerged in the heating medium. Operating the unit while dry can result in damage to the product.

Always check that the heating element is completely immersed before powering it on.
