Terma Diamond (Made to Order)

£264.00 £805.00

Quantity

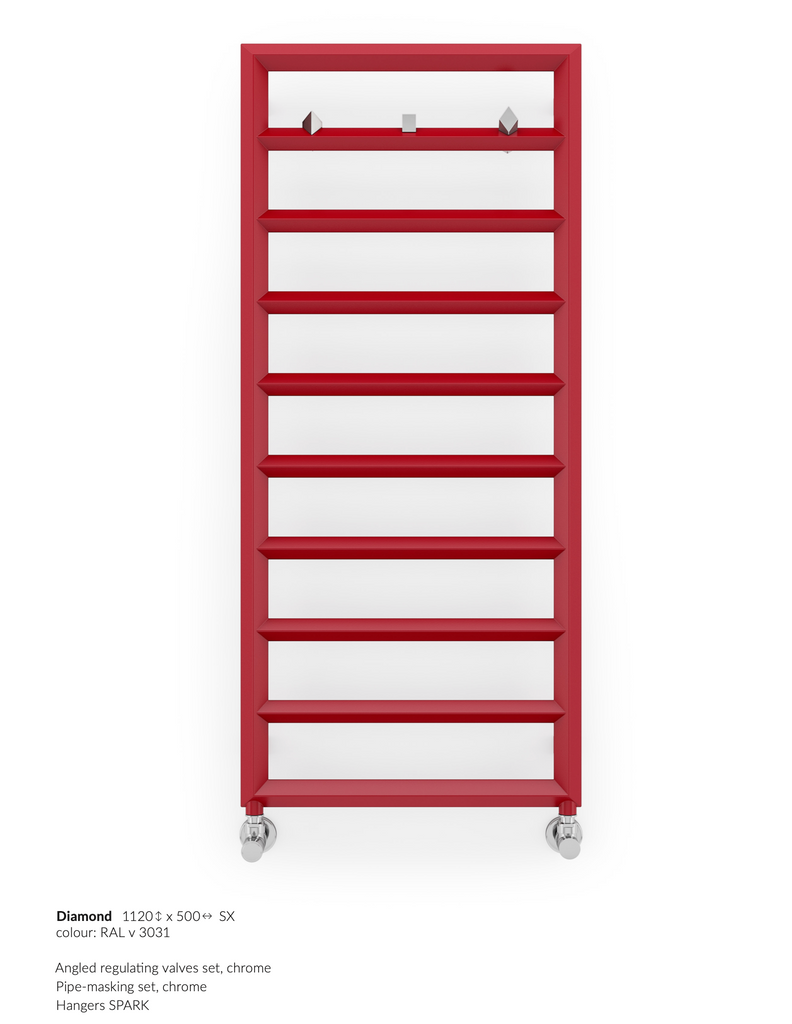

Terma Diamond (Made to Order)

A shape of Diamond radiator was inspired by the structure of crystals and precious stones cuts. Design employs a rhombus tube collector and horizontal profiles. Diamond appears visually light due to its original, edge exposing and light reflecting arrangement of its construction elements. Optional SPARKS hanger are available.

MMV type mounting brackets allow you to adjust the distance of the radiator from the wall
The possibility of installing an electric heating element

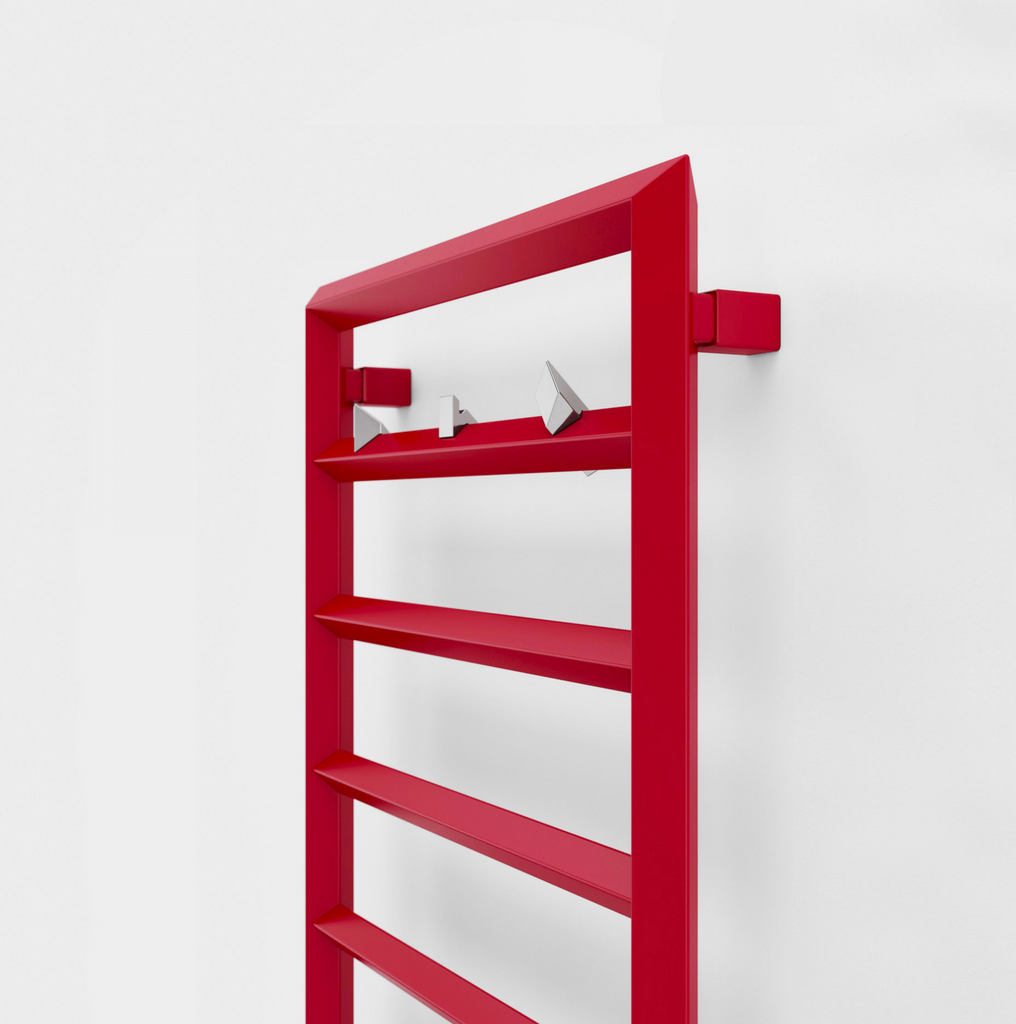

Spark stand increasing the functionality of the heater
Selection of approx. 250 colours

Terma Diamond Designer Towel Rail (Made to Order)

Height	Width	BTU	Watts
880mm	400mm	921	270
880mm	500mm	1091	320
880mm	600mm	1252	367
1120mm	400mm	1160	340
1120mm	500mm	1364	400
1120mm	600mm	1572	461
1360mm	400mm	1398	410
1360mm	500mm	1651	484
1360mm	600mm	1890	554
1600mm	400mm	1637	480
1600mm	500mm	1920	563
1600mm	600mm	2207	647

BTU/Watts calculated at Delta 50

Projection from wall to front face 83mm - 91mm

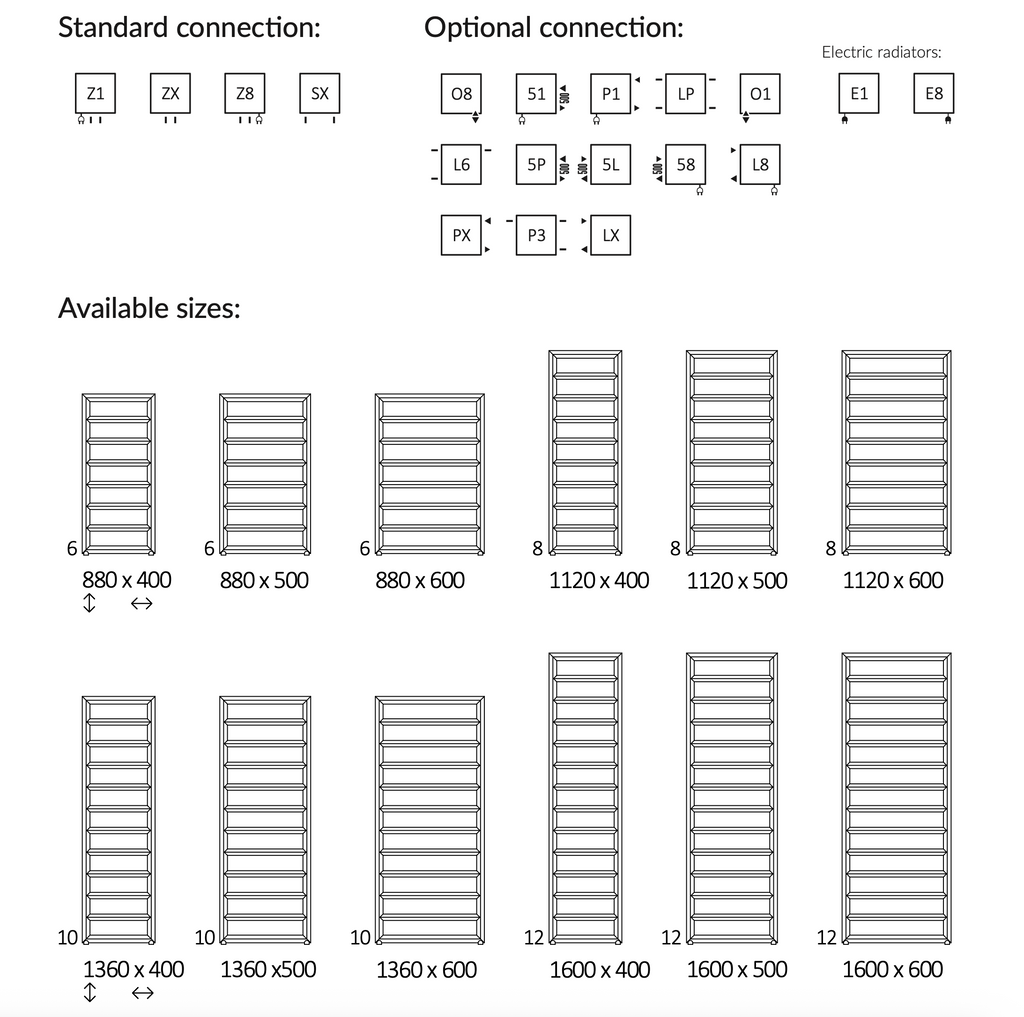

Pipe Centres are Width less 40mm. (SX connections). (Optional 50mm ZX connections)
Manufacturers 12 year warranty (T&C apply)
Material - Mild Steel
Brackets, Wall Fixings, Plug & Vent Included - valves not included

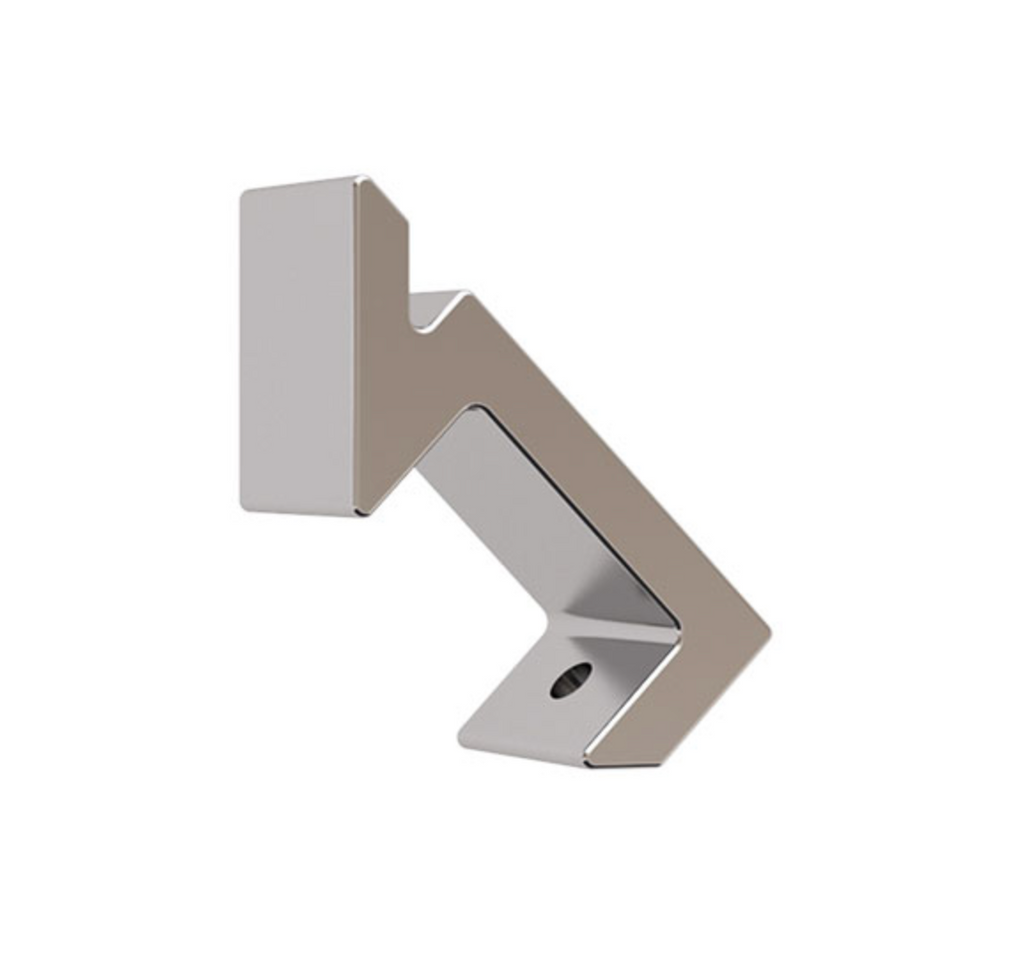

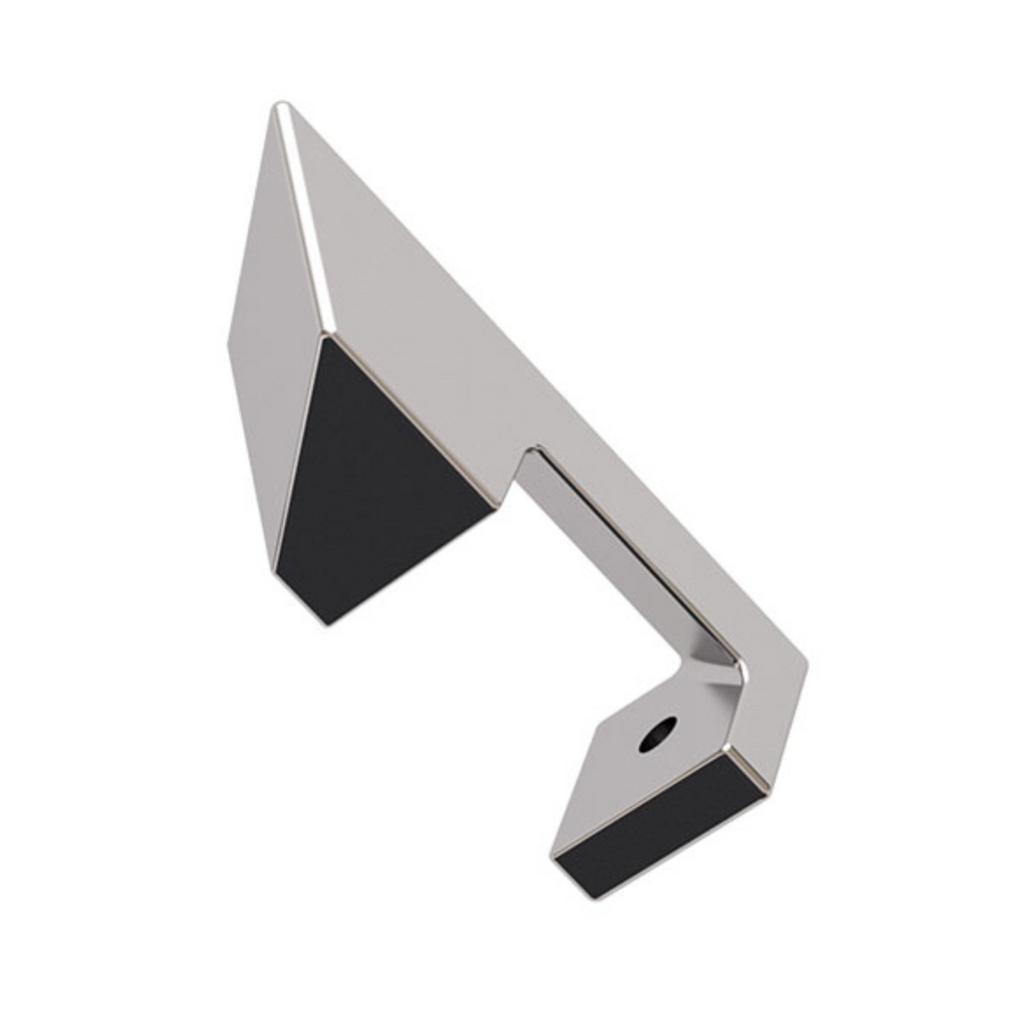

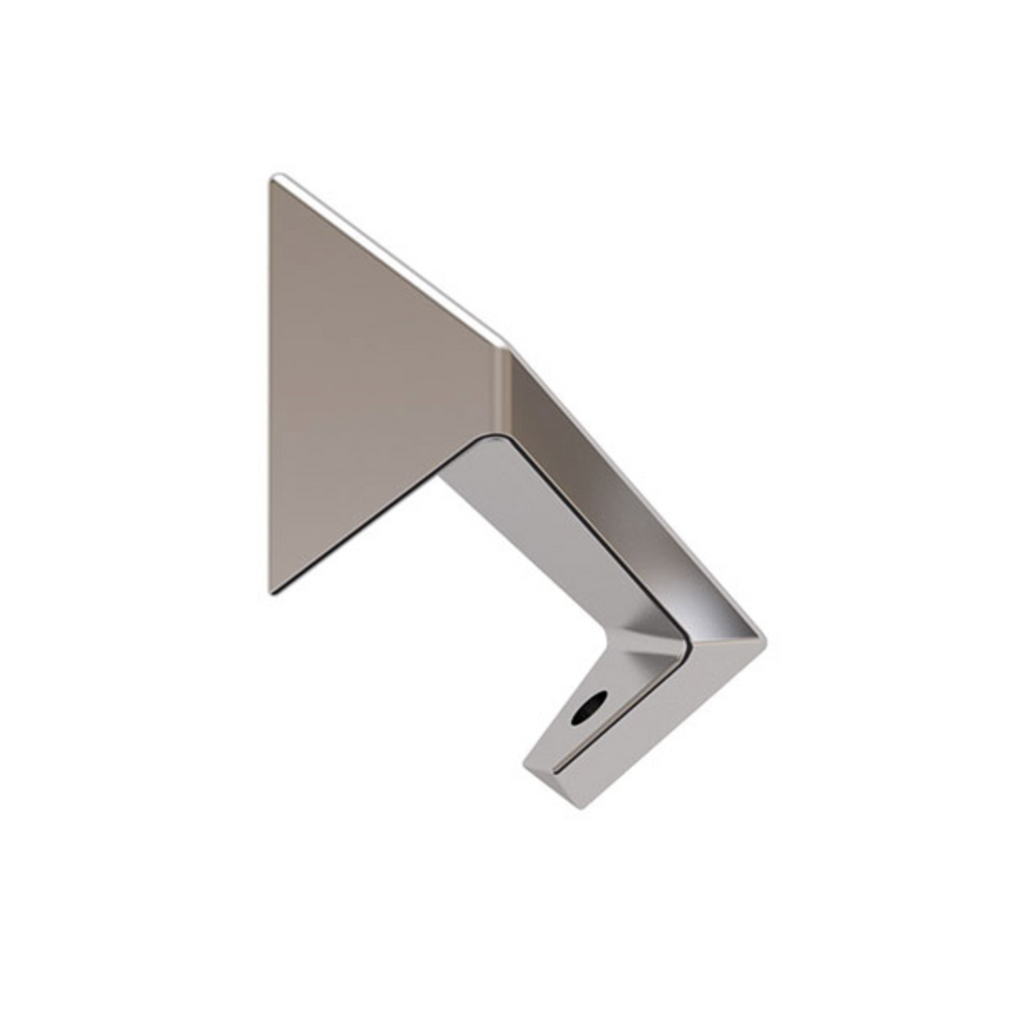

Optional SPARK hangers (these are NOT included).
Manufactured from durable, low carbon mild steel
Central Heating Version
Radiators are made to order - please allow 8 weeks approx
Colours available - RAL (Silk) & Special Colours plus Premium Colours
All RAL colours are available in a matt textured 'Soft' finish. These carry a 25% surcharge on top of paint (with the exception of the 3x stock Soft Colours which are available for the same price as the standard paint - Soft 9016 White, Soft 9005 Black & Soft 3028 Red)

Included accessories :

Bleed valve
Set of mounting brackets

Working pressure: 1 MPa
Maximum operating temperature up to 95°C

3D view

Colour Choice - please click here

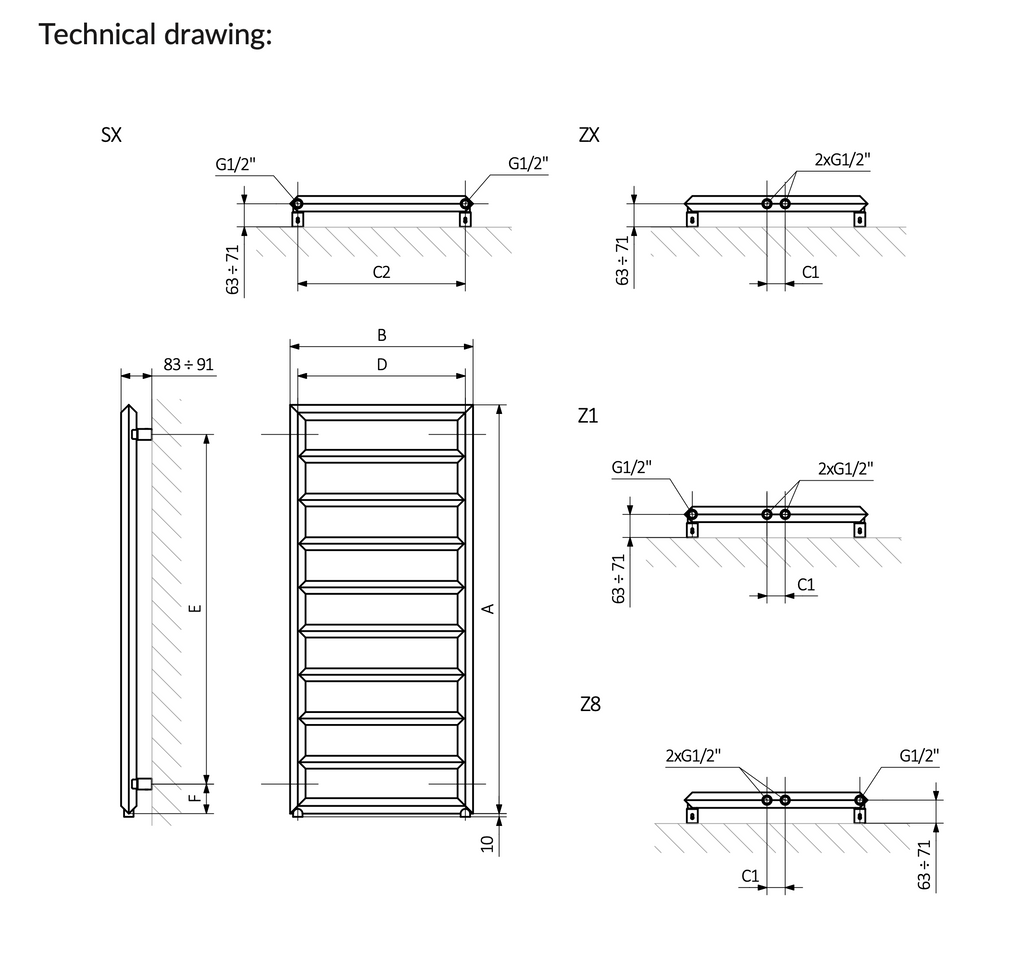

Technical Data

Terma Diamond Product Card

Enter the Colour required on the FREE TEXT section at the Cart stage.
