MHS Multisec (Bespoke) - 4 Column (Copper/Brass Lacquer)
** LIMITED TIME - DISCOUNT **
SPEND £1000.00 ON MHS Multisec BESPOKE - USE MHS3 FOR AN EXTRA 3% OFF
SPEND £2000.00 ON MHS Multisec BESPOKE - USE MHS6 FOR AN EXTRA 6% OFF
The classy Multisec Raw multi column radiator offers a contemporary industrial look with its polished and machined metal finish set beneath a deep Brass or Copper lacquer. This radiator is available in any size chosen from the Multisec range and is made from the same 25mm diameter, 1.2mm steel with 1.5mm headers. Each radiator is supplied with wall brackets, plug and air vent. Capable of operating up to 8 bar (tested to 10 bar), each Multisec Raw radiator has ½”bsp-f connections (standard connection detail 08 = BBOE).

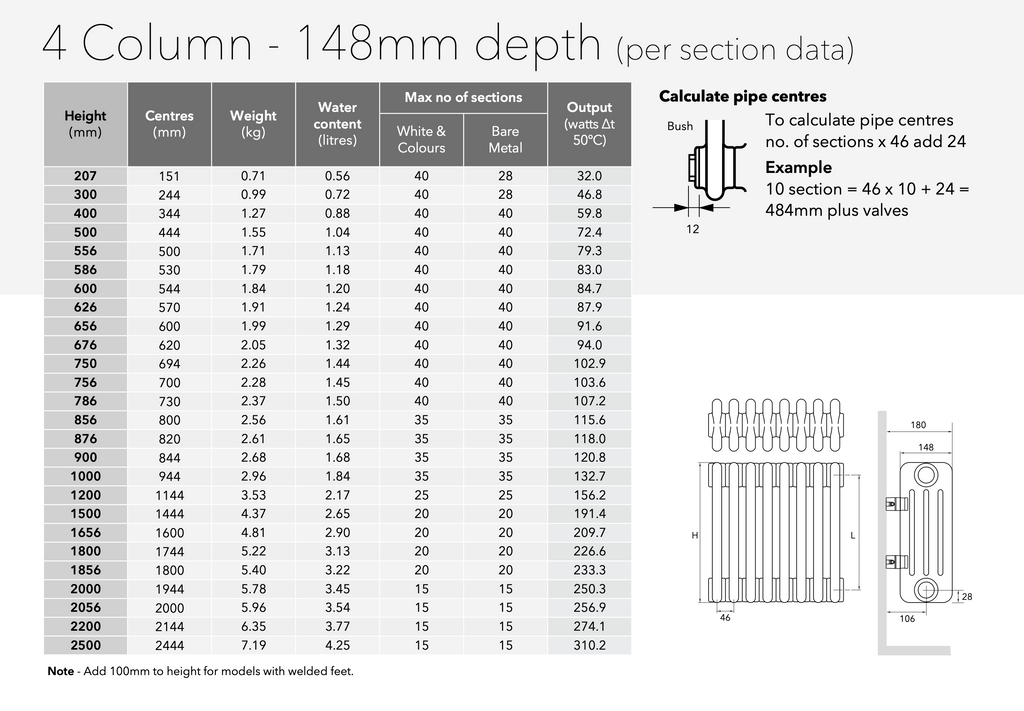

** 4 Column - Depth 148mm
Details are per section Each section is 46mm
Height.......Watts
207mm......32.0
300mm......44.8
400mm......59.8
500mm......72.4
556mm......79.3
586mm......83.0
600mm......84.7
626mm......87.9
656mm......91.6
676mm......94.0
750mm......102.9
786mm.....107.2
856mm.....115.6
900mm.....120.8
1000mm......132.7
1200mm......156.2
1500mm......191.4
1656mm......209.7
1800mm......226.6
1856mm......233.3
2000mm.....250.3
2056mm......256.9
2200mm......274.1
2500mm......310.2
Watts calculated at Delta 50 per section
To convert Watts to BTU, multiply Watts by 3.412. Eg 2500mm has Watts of 310.2 x 3.412 is 1058 BTU
Wall to face is 180mm/190mm (4 column)
Wall to pipe 106mm/116mm (4 column)
Finish -
Copper or Brass Lacquer
Material - Mild Steel
Country of origin - Italy
Manufacturers Warranty - 5 years
Please click here for MHS Multisec Technical & Installation guide
MADE TO ORDER - PLEASE ALLOW 5 WORKING WEEKS. (Factory closes all of August, Easter, Christmas & New Year)
*** HOW TO ORDER ***
(1) .. Choose Height
(2) .. Increase the quantity tab by the number of sections required - eg 10 sections required - the quantity should show as 10. Take this to the Cart.
MINIMUM 3 SECTIONS - MAXIMUM SECTIONS (Please see technical details - third image)
If you do not require any of the options - Chrome Towel Bar, Welded Feet and the order is more than £400.00, continue with payment at the CART STAGE.
Once you are in the CART, click on the radiator image and it will take you back to the product IF the options are required.
If no options are required, please enter the finish required - Copper or Brass Lacquer at the CART STAGE, in the Additional Text Box.
(3) .. If require
Optional Welded Feet
or
Optional Multisec Chrome Towel Bar (Suitable for 8 sections) & a larger one (Suitable for 11 sections)
OR a delivery charge is applicable.
A delivery charge of £36.00 will due if the order is less than £400.00. This amount excludes the optional feet or towel bar.
MAINLAND UK ONLY (WE DO NOT DELIVER TO BT, HS, GY, IM & JY).
Also excludes delivery to KW, IV, AB, DD, & PH Scottish Postcodes - please call or email for delivery charges to these postcodes.
To add the delivery charge/order the welded feet/order the cast feet or towel bar please click here.
********************************
We are not just an online retailer - we have a 150+ designer radiator showroom in the heart of Leeds.
Buy with confidence as we are an approved MHS supplier - the MHS Multisec (Copper/Brass Lacquer) Bespoke Designer Radiator comes with a 5 year manufacturers guarantee.
********************************
