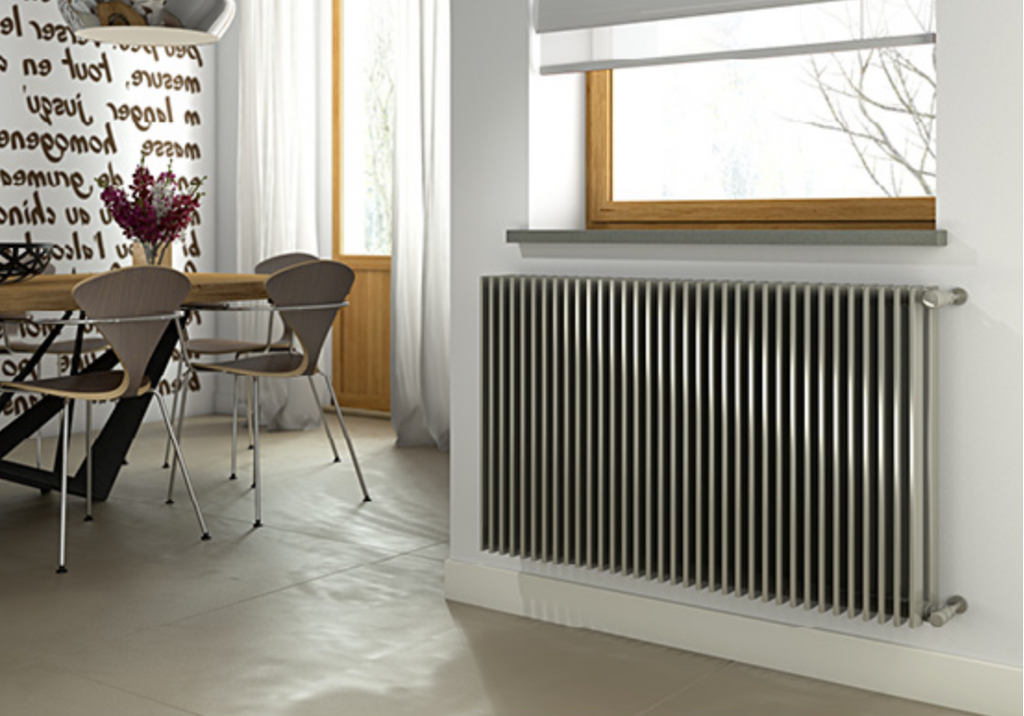

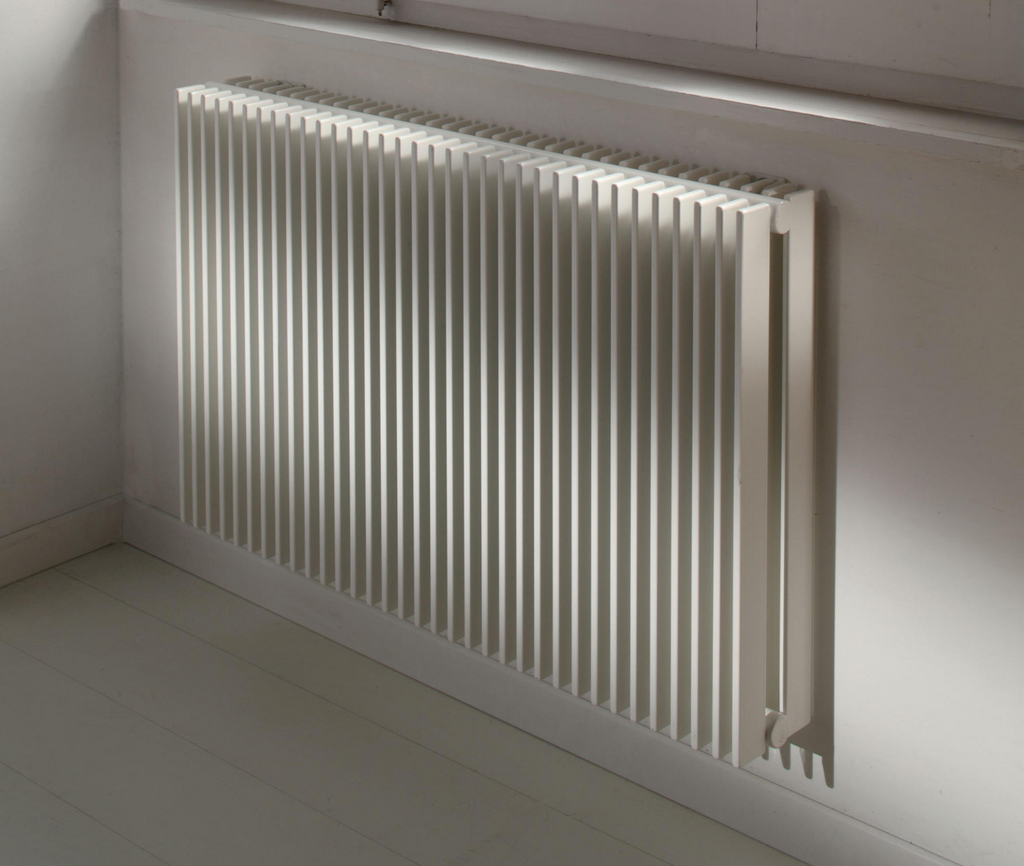

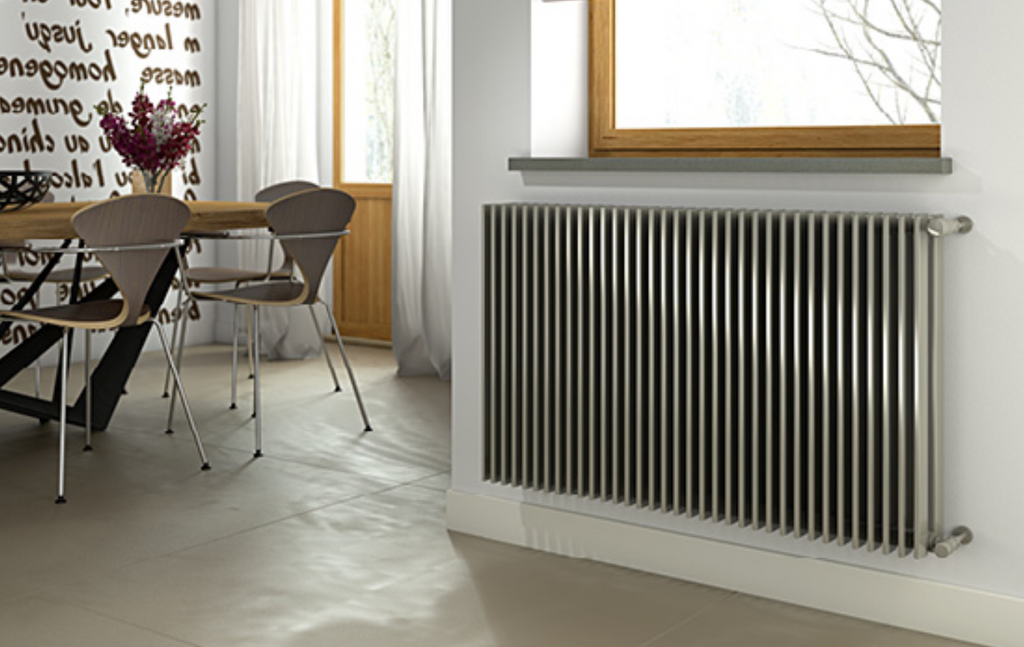

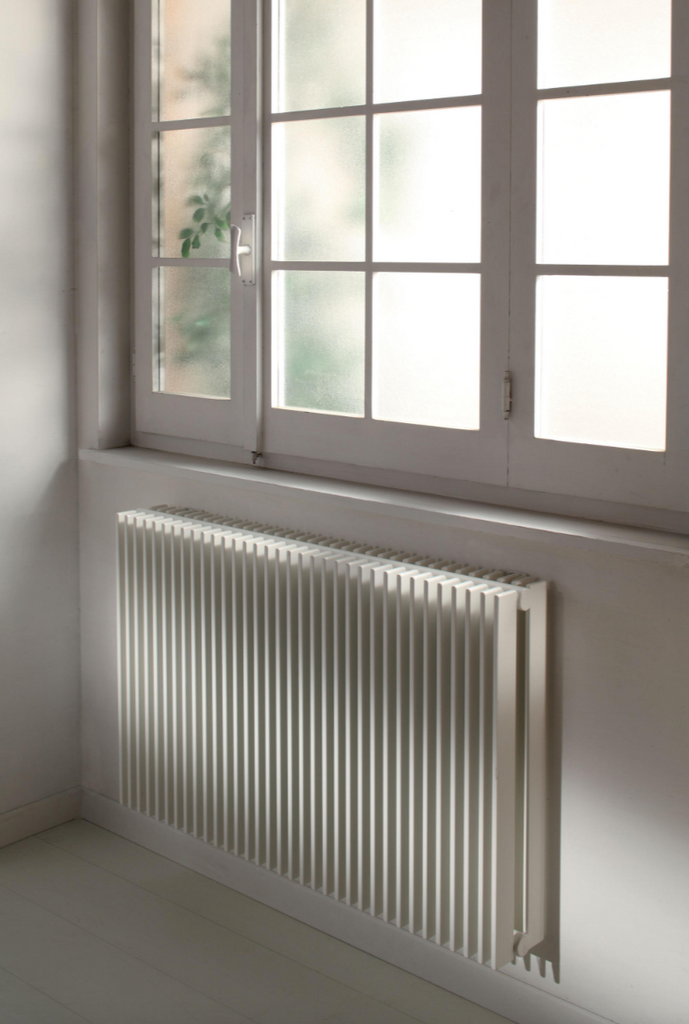

Como (White) Horizontal Designer Radiator - Height 738mm
This is a modern, high output radiator.
Height.........Width......BTU......Watts
738mm…..263mm…..2,102…....616
738mm…..293mm…..2,334…...684
738mm…..323mm…..2,566…...752
738mm…..353mm…..2,801…....821
738mm…..383mm…..3,033…...889
738mm…..413mm…..3,269..….958
738mm…..443mm….3,501..…..1,026
738mm…..473mm….3,733.…...1,094
738mm…..503mm….3,968..…..1,163
738mm…..533mm….4,200..…..1,231
738mm…..563mm….4,436..…..1,300
738mm…..593mm….4,668..…..1,368
738mm…..623mm….4,900…....1,436
738mm…..653mm….5,135…....1,505
738mm…..683mm….5,367…....1,573
738mm…..713mm….5,603…....1,642
738mm…..743mm….5,835…....1,710
738mm…..773mm….6,067…....1,778
738mm…..803mm….6,302…...1,847
738mm…..833mm….6,534.…..1,915
738mm…..863mm….6,769…....1,984
738mm…..893mm….7,001…....2,052
738mm…..923mm….7,233…....2,120
738mm…..953mm….7,469…....2,189
738mm…..983mm….7,701….....2,257
738mm…..1013mm….7,936..….2,326
738mm…..1043mm...8,168…...2,394
738mm…..1073mm....8,400…..2,462
738mm…..1103mm….8,636…...2,531
738mm…..1133mm….8,868…...2,599
738mm…..1163mm….9,103…...2,668
738mm…..1193mm….9,335…...2,736
738mm…..1223mm….9,567..….2,804
738mm…..1253mm....9,803…..2,873
738mm…..1283mm….10,035....2,941
These radiators are made to order and take 6 - 8 working weeks to manufacture. (Please note that the manufacturers close all of August for their summer shut down)
BTU/Watts calculated at Delta 50
To calculate at Delta 30 (Conversion Factor 0.51) 738x1283 BTU 5,117 & Watts 1,499
Please ensure the wall is load bearing as these radiators are heavy.
Manufacturers warranty - 5 years
Material - Mild Steel
Country of Origin - Italy
Wall to face 154mm
Pipe centres from wall 85mm
Pipe Centre to Pipe Centre - Width plus valve
Vertical Bars are 10mm x 15mm and the horizontal collector has a diameter of 38mm.
Colour - Traffic White RAL 9016 & Pure White RAL 9010
Colour - RAL 9010 (Pure White) or RAL 9016 (Traffic White) - Traffic White is a brilliant white designed to complement the finish of modern sanitary ware. Pure White is softer, and is usually preferred for rooms other than bathrooms where Traffic White is considered too harsh. RAL 9016 is also preferred if near standard bright white UPVC windows or french doors.
Material
• Horizontal collectors in painted mild steel with ø of 38 mm.
• Double horizontal heating elements in painted mild steel 10 x 50 mm.
FIXING KIT:
Brackets, airvent, hexagonal tool, plugs and screws .
PAINTING PROCESS:
Painted with ecological epoxy powders. (Certificate DIN 55900-1,-2)
As standard (V1 connections) - FLOW will be on the left hand side as you look at the radiator. If you want FLOW on the right hand side you MUST specify this at the time of order.
