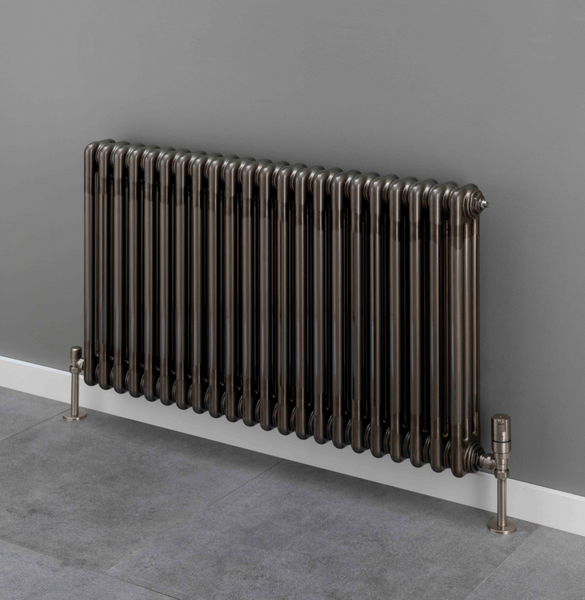

Supplies4Heat Cornel (Bare Metal Lacquer) is a stylish contemporary radiator based on a traditional theme. Lighter than cast iron but with all its time honoured glamour, spans the gap between contemporary and classic, equally at home in either application.
* Steel Multi Column Radiator in 2, 3 & 4 column options
* Lacquer Bare Metal finish
* Supplied with Wall Brackets, Wall ties and 1 Manual Airvent
* Optional Slip on feet
* Manufactured to ISO 9001:2000, EN442
*** HORIZONTAL ***
*** 2 Column - Depth 65mm ***
Height…..Width…....BTU...…..Watts...Sections
500mm….431mm…...1,105…....324.......9
500mm….611mm…...1,597…....468…....13
500mm….836mm…...2,211…....648…....18
500mm….1016mm…..2,702…...792…....22
500mm….1196mm.....3,194…...936..…...26
600mm….611mm…...1,907…....559…...13
600mm….836mm…...2,641…...774.......18
600mm….1016mm…..3,228…...946…...22
600mm….1196mm.....3,815.....1118…...26
*** 3 Column - Depth 101mm ***
Height…..Width…....BTU...…..Watts...Sections
500mm….431mm…...1,556…....459.......9
500mm….611mm…...2,262…....663…...13
500mm….836mm…...3,132…....918…....18
500mm….1016mm….3,828…....1122…..22
500mm….1196mm.....4,524…...1326…..26
600mm….611mm…...2,661…....780…...13
600mm….836mm…...3,685…...1080.....18
600mm….1016mm….4,504…....1320…..22
600mm….1196mm.....5,323…...1560…..26
*** 4 Column - Depth 139mm ***
Height…..Width.......BTU......Watts..Sections
500mm….476mm…...2,252…....660......10
500mm….611mm…...2,927…....858…....13
500mm….836mm…...4,053…...1188…...18
500mm….1016mm….4,954…....1452…...22
500mm….1196mm.....5,855…...1716…...26
600mm….611mm…...3,504…....1027…..13
600mm….836mm…...4,852…....1422.....18
600mm….1016mm….5,930….....1738…..22
600mm….1196mm.....7,008…....2054…..26
*** VERTICAL ***
*** 2 Column - Depth 65mm ***
Height…..Width…....BTU...…..Watts...Sections
1500mm….296mm…...2,109…....618.......6
1500mm….386mm…...2,811…....824…....8
1500mm….476mm…...3,514…....1030....10
1800mm….206mm…...1,692…....496….....4
1800mm….341mm…...2,962…....868.......7
1800mm….431mm…...3,808…....1116…....9
1800mm….521mm......4,654…....1364…..11
1800mm….611mm......5,500…....1612…..13
*** 3 Column - Depth 101mm ***
Height…..Width…......BTU...…..Watts...Sections
1800mm….341mm…..4,013…...1176......7
1800mm….431mm…..5,159…...1512…....9
1800mm….521mm.....6,305…...1848…...11
1800mm….611mm.....7,452…...2184…..13
BTU/Watts calculated at Delta 50.
To convert to Delta 60 multiply by 1.264 eg 600mm x 1196mm (4 column) is 8,858 BTU & 2,596 Watts at Delta 50.
Optional Slip on Feet
Increase height by 100mm (2 feet per radiator - 22 & 26 radiators require 3 feet)
2 Feet per radiator up to 18 sections, 22 & 26 section radiators require 3 feet.
Pipe to Pipe - Width of radiator plus valves
Pipe Centres from Wall - 2 column is 56mm, 3 column is 74mm & 4 column is 93mm
Country of origin - Italy
Wall to face is 2 column - 89mm, 3 column - 125mm & 4 column - 163mm
Manufacturer guarantee 10 years
Optional Chrome Towel Bar also available (Image shows for 8 section)
.
Optional Chrome Towel Bar to fit 8 section or 10 section or more
The towel bar will sit off centre for radiators that have an uneven number of sections.
********************************
