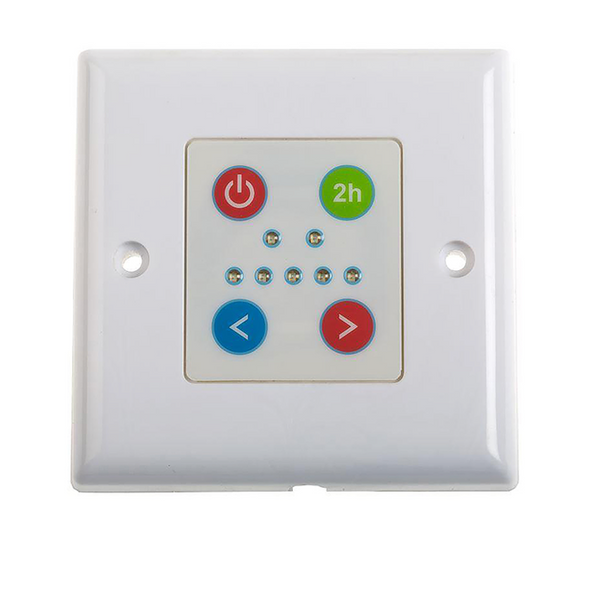

Temperature Control Plate for SIM Elements TGRTCPBI001 & TGRTCPCR001
Achieve precise temperature management with this external control plate, designed for use with fixed temperature elements such as the Terma SIM.
Ideal for retrofitting when enhanced temperature control is desired without replacing the entire element. This device regulates temperature by pulsing power on and off across five settings, ensuring consistent warmth.
While the device is supplied in white, a separate chrome fascia plate is available should you prefer a chrome finish.
The maximum capacity is 1000W; ensure your element does not exceed this wattage.
Uses power to regulate in on and off cycles, maintaining the chosen temperature setting across 5 selectable levels. These are split into 12 second intervals - so works as follows:
-
- Setting 5 - On for 60 seconds of a minute
- Setting 4 - On for 48 seconds of a minute
- Setting 3 - On for 36 seconds of a minute
- Setting 2 - On for 24 seconds of a minute
- Setting 1 - On for 12 seconds of a minute
Note: The device does not limit current to control the temperature.
Fits over a standard flush-mounted back box for a clean and professional installation.
Designed specifically for fixed temperature elements, including Terma SIM.
Not suitable for elements with built-in variable control or higher wattage ratings.
2-year manufacturer’s warranty for peace of mind.
